三星电感

  • 三星贴片电感

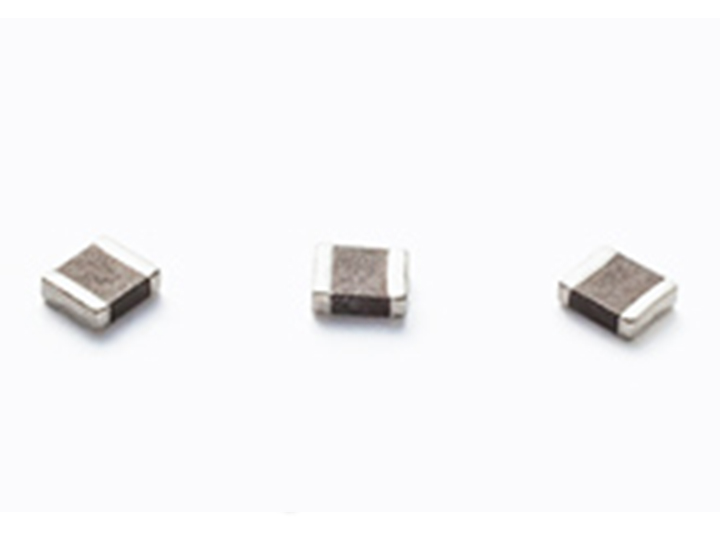

三星贴片电感

三星贴片电感

    产品型号：XM

    产品尺寸：0603 (1608)

    产品分类：三星电感

    上架时间：2021-10-10 11:33

    产品描述：Power Inductor 分类 Power Inductor可依据Body材料分为Ferrite和Metal Composite， Metal Composite类型的额定电流高，效率良好。 Multi layer Type Multi layer Type Line-Up Size inch/(mm) Series Max T (mm) Inductance (uH) 0...

  • 在线订购

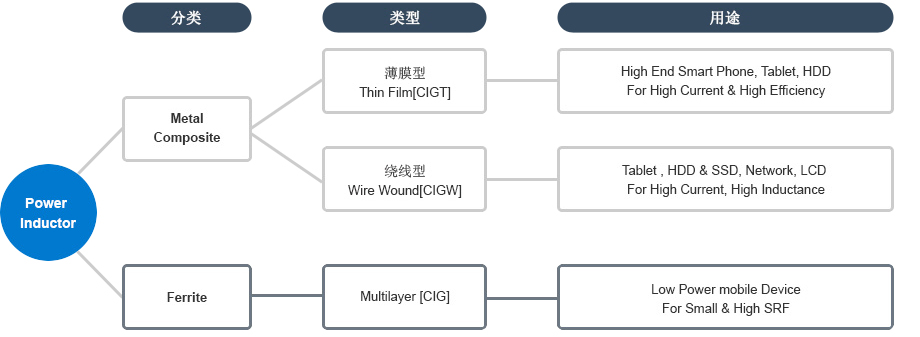

Power Inductor 分类

Power Inductor可依据Body材料分为Ferrite和Metal Composite， Metal Composite类型的额定电流高，效率良好。





Multi layer Type

Multi layer Type Line-Up
Size
inch/(mm)		 Series Max T
(mm)		 Inductance (uH)
0.22 0.24 0.27 0.47 1.0 1.5 2.2 3.3 4.7
0603
(1608)		 10F Low Profile 0.50       Mass Production 0.47uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH
10W Normal Type 0.95   Mass Production 0.24uH   Mass Production 0.47uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
10H High Current 1.00 Mass Production 0.22uH   Mass Production 0.27uH       Mass Production 2.2uH
10L Low Rdc 0.75             Mass Production 2.2uH
0805
(2012)		 21W Normal Type 1.00         Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
21F Low Profile(0.5T) 0.50       Mass Production 0.47uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH
21C Choke 1.00             Mass Production 2.2uH   Mass Production 4.7uH
21L_MAC Low Profile(0.8T) 0.80             Mass Production 2.2uH
21L_MNE Low Rdc 1.00       Mass Production 0.47uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
21E High Current 1.00       Mass Production 0.47uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH
Multi layer Type Line-Up
Size
inch/(mm)		 Series Max T
(mm)		 Inductance (uH)
0.24 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10.0
0806
(2016)		 2MW Normal Type 1.00     Mass Production 0.47uH Mass Production 0.68uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
1008
(2520)		 22W Low Rdc 1.00         Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
22L High Current
Low Profile(0.8T)		 1.00     Mass Production 0.47uH   Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH Mass Production 6.8uH Mass Production 10.0uH
22B_MAE High Current(1.0T) 0.80     Mass Production 0.47uH   Mass Production 1.0uH   Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
22B_MNE High Current(1.2T) 1.00 Mass Production 0.24uH Mass Production 0.33uH Mass Production 0.47uH Mass Production 0.68uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
22H_MAE Low Profile Type 1.00   Mass Production 0.33uH Mass Production 0.47uH   Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH
22H_MNE High Current(1.2T) 1.20         Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
22E_MAE High Efficiency 0.90   Mass Production 0.33uH Mass Production 0.47uH   Mass Production 1.0uH   Mass Production 2.2uH
22E_MNE Low Profile Type 1.00     Mass Production 0.47uH   Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
22E_MBE High Efficiency 1.20     Mass Production 0.47uH
22B_MLE High Current
Low Profile(1.0t LGA Type)		 1.00           Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
Multi layer Type Line-Up
Size Series Max T
(mm)		 Inductance (uH)
0.16 0.24 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10.0
1210
(3225)		 32W Normal Type 1.00           Mass Production 1.0uH

Thin Film Type

Thin Film Type Line-Up
Size
inch/(mm)		 Series Max T
(mm)		 Inductance (uH)
0.16 0.24 0.47 1.0
0603
(1608)		 XM 0.8   Mass Production 0.24uH
0805
(2012)		 EH 0.6       Mass Production 1.0uH
EM 0.8     Mass Production 0.47uH Mass Production 1.0uH
EH 0.8     Mass Production 0.47uH
UM 1.0 Mass Production 0.16uH Mass Production 0.24uH Mass Production 0.47uH Mass Production 1.0uH
EM 1.0       Mass Production 1.0uH
Thin Film Type Line-Up
Size
inch/(mm)		 Series Max T
(mm)		 Inductance (uH)
0.24 0.47 0.68 1.0 1.5 2.2
0806
(2016)		 LM 0.8 Mass Production 0.24uH Mass Production 0.47uH Mass Production 0.68uH Mass Production 1.0uH
EM 0.8       Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH
EH 0.8   Mass Production 0.47uH   Mass Production 1.0uH   Mass Production 2.2uH
LM 1.0 Mass Production 0.24uH Mass Production 0.47uH Mass Production 0.68uH Mass Production 1.0uH   Mass Production 2.2uH
LH 1.0 Mass Production 0.24uH Mass Production 0.47uH   Mass Production 1.0uH   Mass Production 2.2uH
EH 1.0   Mass Production 0.47uH   Mass Production 1.0uH   Mass Production 2.2uH
Thin Film Type Line-Up
Size
inch/(mm)		 Series Max T
(mm)		 Inductance (uH)
0.24 0.33 0.47 0.68 1.0 1.5 2.2
1008
(2520)		 LM 0.8 Mass Production 0.24uH Mass Production 0.33uH Mass Production 0.47uH   Mass Production 1.0uH   Mass Production 2.2uH
LH 0.8     Mass Production 0.47uH
EH 0.8     Mass Production 0.47uH
LM 1.0 Mass Production 0.24uH Mass Production 0.33uH Mass Production 0.47uH Mass Production 0.68uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH
EH 1.0         Mass Production 1.0uH   Mass Production 2.2uH
LM 1.2     Mass Production 0.47uH Mass Production 0.68uH Mass Production 1.0uH   Mass Production 2.2uH

Wire Wound Type

Wire Wound Type Line-Up
Size
inch/(mm)		 Series Max T
(mm)		 Inductance (uH)
0.24 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8
0806
(2016)		 GL/GH 1.0   Mass Production 0.33uH Mass Production 0.47uH Mass Production 0.68uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH   Mass Production 4.7uH
1008
(2520)		 GL 1.0   Mass Production 0.33uH Mass Production 0.47uH Mass Production 0.68uH Mass Production 1.0uH Mass Production 1.5uH Mass Production 2.2uH Mass Production 3.3uH Mass Production 4.7uH
